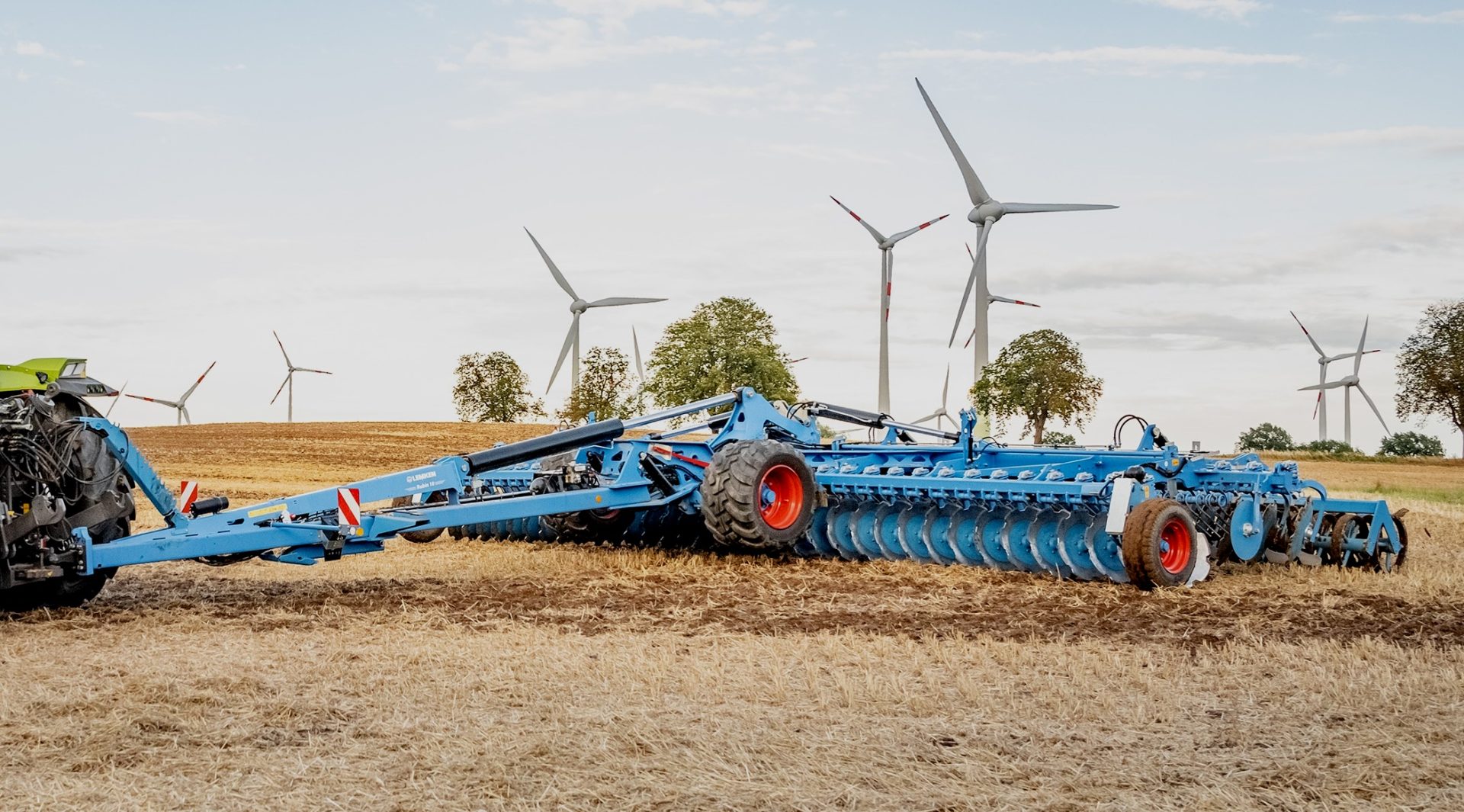

Lemken has rounded off the top end of the Rubin compact disc harrow range with a 10m model.

Using the same symmetrical disc arrangement as smaller models in the range, the Rubin 10/1000 can be hitched via a ball coupling or drawbar eye and hydraulic support is available to make attachment and detachment easier.

Working to a depth of 7.0cm, the two rows of 645mm diameter serrated concave discs (14cm spacing between each one) is said to ensure blockage-free work even with large volumes of surface trash, and the overload protection system on each disc is said to reduce stress on the frame.

The pendulum type suspension of the working sections is claimed to result in optimal field contour following (iQ-Contour pendulum compensation available for very uneven terrain or when working on slopes).

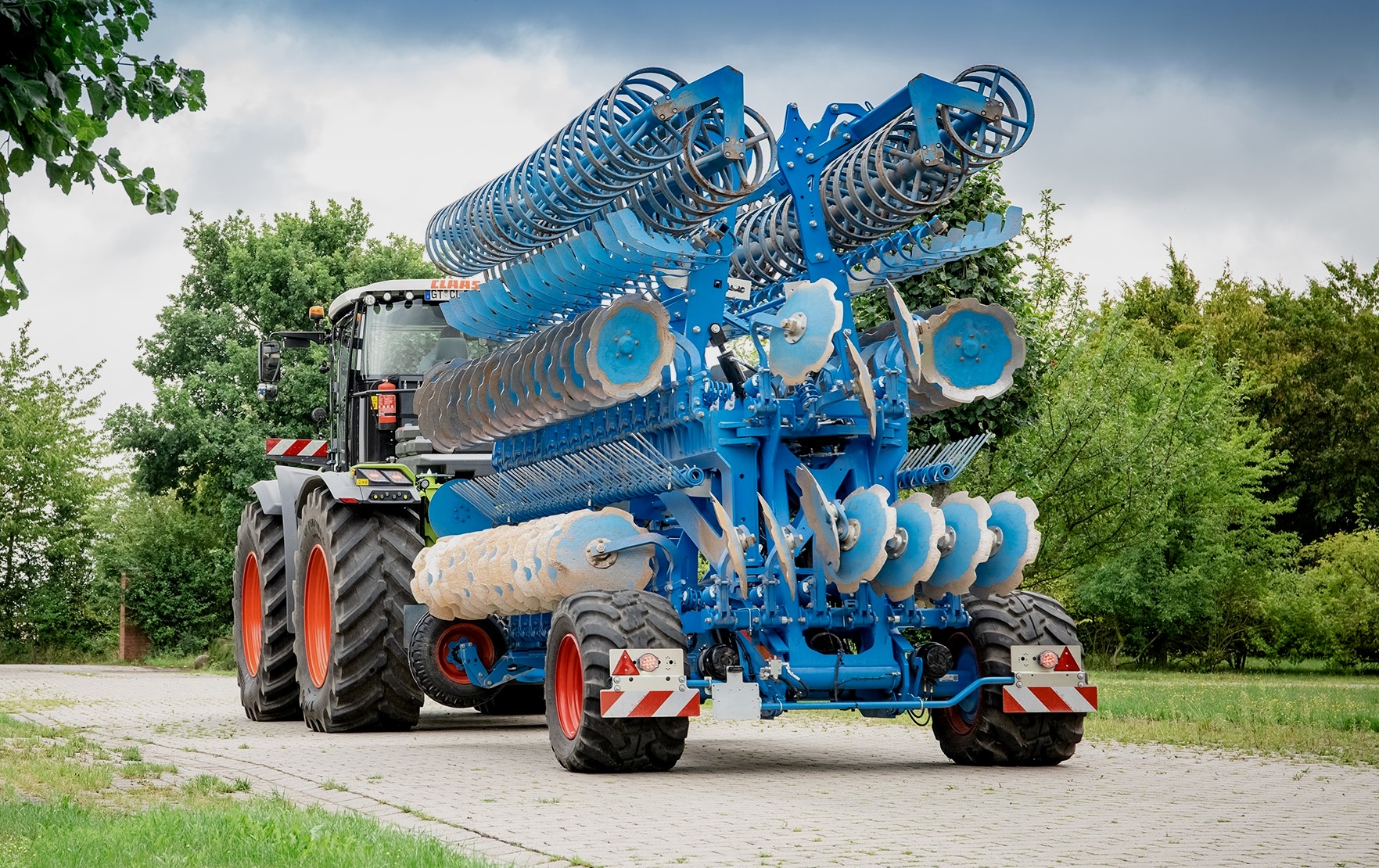

Depth adjustment is hydraulic and the working depth can be changed on the move. The implement is supported on the roller during the turning process, and the roller’s patented folding system reduces the transport width and height to 3.0m and 4.0m, respectively. The Rubin 10/1000 is approval for road speeds of up to 40km/hr.
