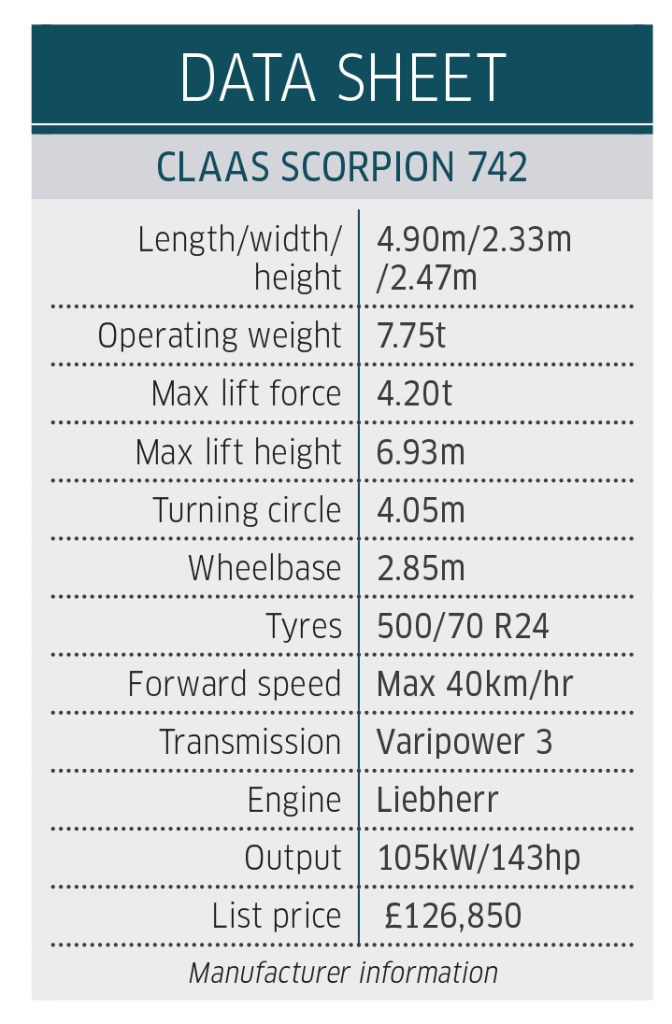

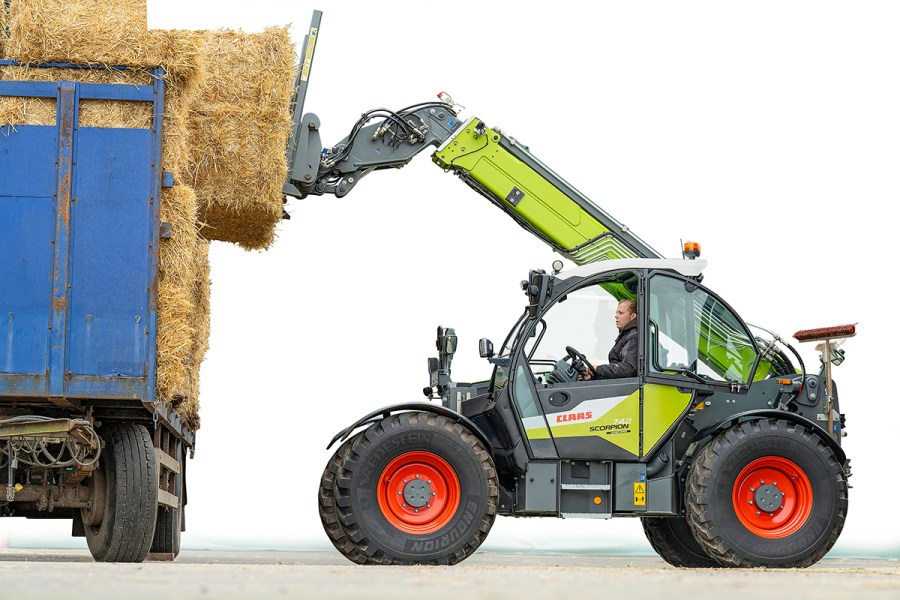

Claas has revised its range of small telehandlers, bringing them in line with the larger models. Our attention here is on the 6.93m, 4,200kg capacity 742 which replaces the most popular model, the 741.
KEEPING IT BRIEF
- With the updates to the smaller telehandler models, Claas brings them closer to the bigger machines.
- Many of the changes are based on ergonomics and user-friendliness as well as making the controls more accurate.
The Claas Scorpion range consists of three larger frame models (the 746, 756 and 950) along with five smaller size machines (638, 733, 738, 742 and 1033), and it is these latter models that have recently been updated. To find out just what has changed we grabbed the chance to take a closer look at the Claas 742 Varipower.
News about the cab

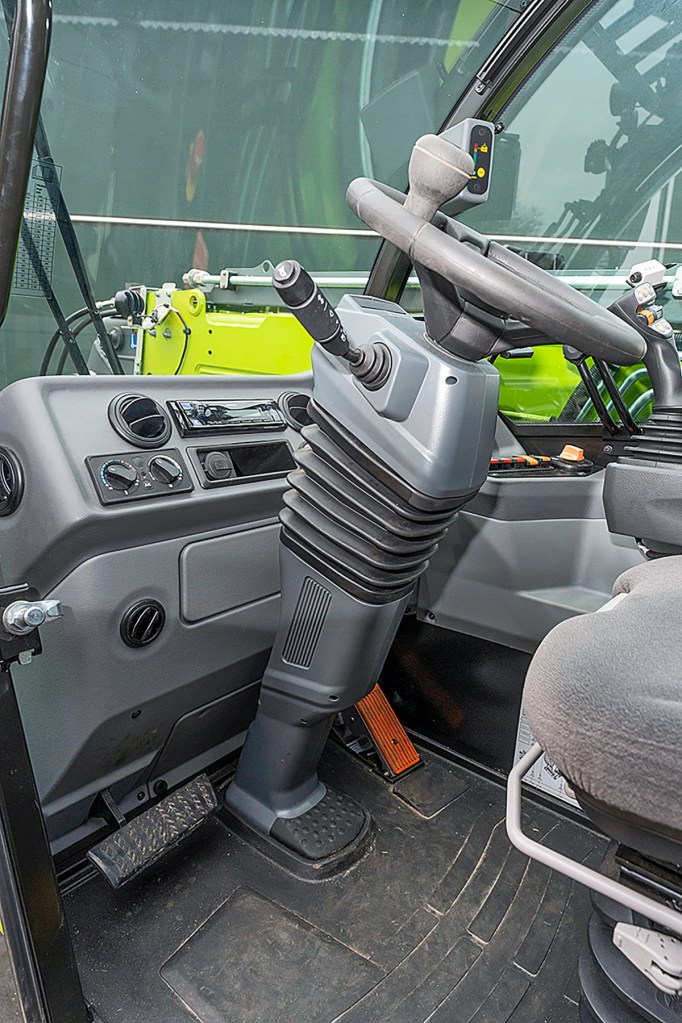

The biggest updates relate to inside the cab. Firstly, there is the joystick, which is now attached to the seat and moves with it. The control layout and the level of specification now matches those of the large models.
A new hydraulic system with electronic pilot control brings smart loading functions to this handler range. This includes an auto shake function and fine hydraulic control for slowing the response time when you want extra precision. In addition, the steering column has been slimmed down and major improvements made to the ventilation and temperature control. The air con has more puff and the controls have migrated to the front left, offering a 13-step fan speed (from previously three) for faster window demisting in winter. If you like fresh air, the top stable door sits flatter so it protrudes less to the side.
Boosted productivity
The previously mentioned updated pilot controls for the hydraulics do their bit to increase precision and speed up cycle times. In addition, the smaller handlers now share the optional automatic Dynamic Power engine speed control. This also helps ramp work cycles, on the one hand, and is claimed to save fuel, because the engine speed is controlled automatically and increases only on demand.
In addition to the firm’s Varipower 2 drive, Varipower 3 drive now appears on the Scorpion 742. This ups the traction effort to 6,800daN, which is about 20% more power than from the Varipower 2, says Claas. This should boost productivity in pushing and pulling applications and also reduce fuel consumption when roading under load.

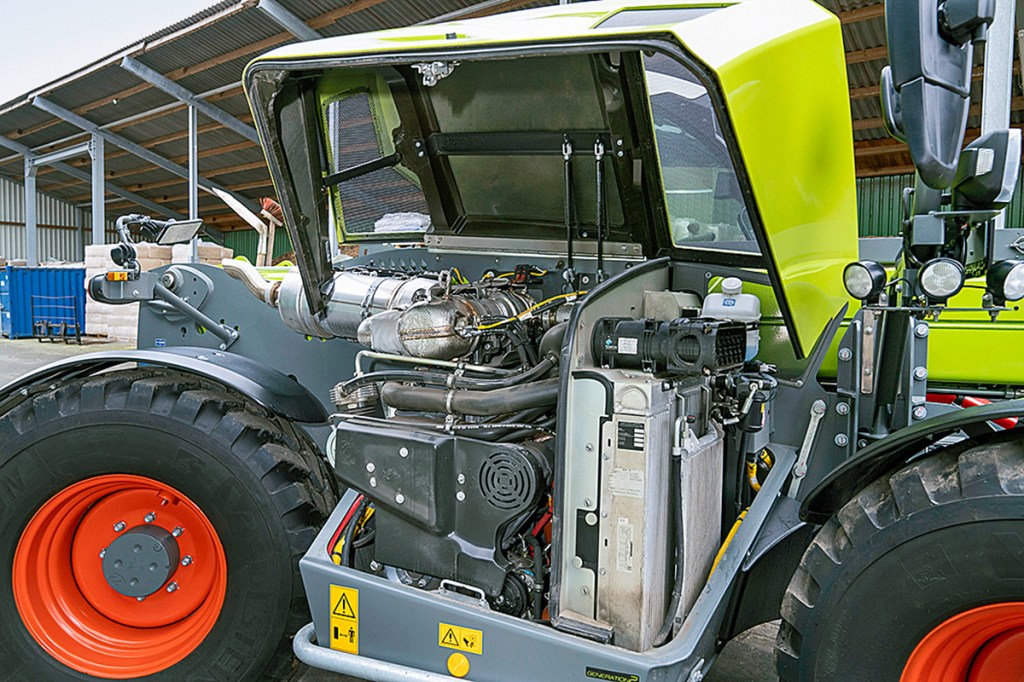

Accessibility, too, has been improved when it comes to cleaning and servicing.
Practical features

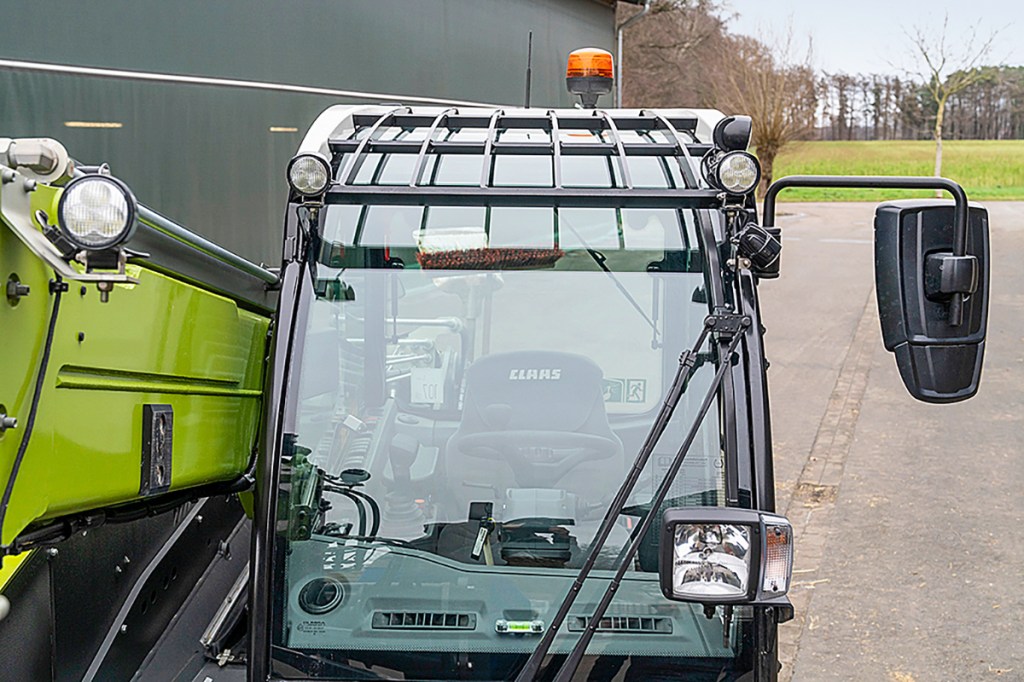

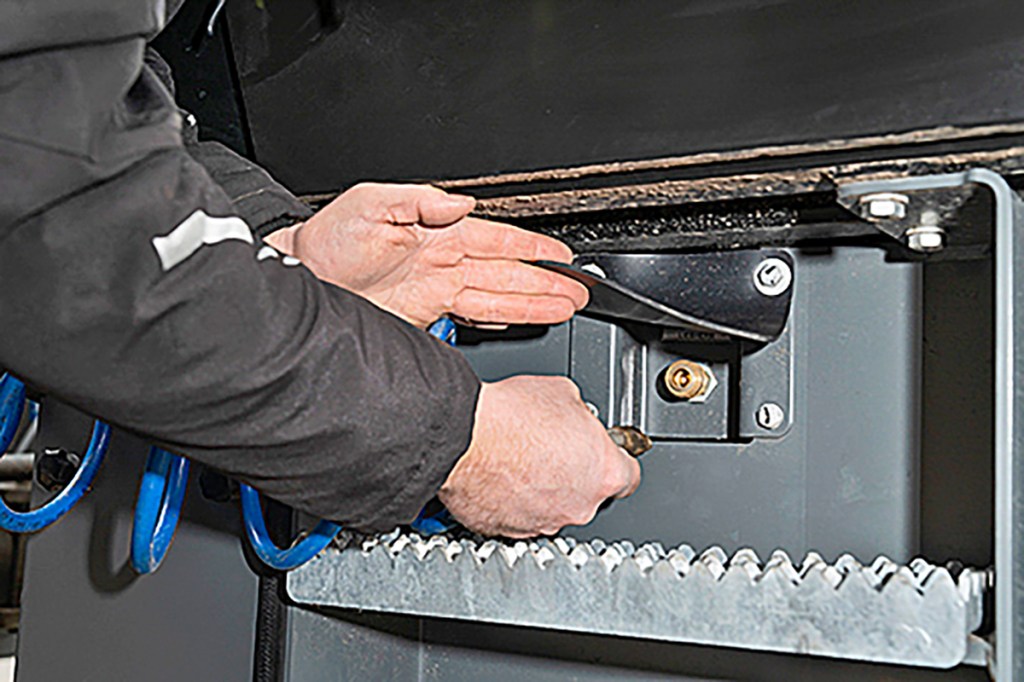

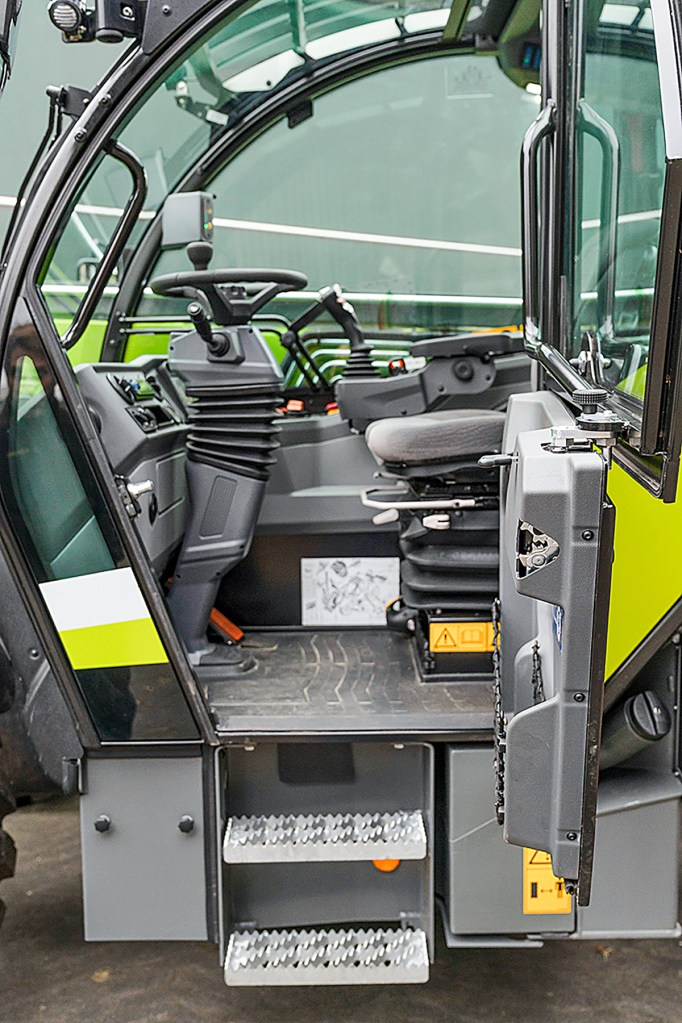

A new addition to the standard LED lighting system (there are two versions; basic and premium) is a separate light that illuminates the steps and side of the handler. If you have air brakes, then you will also find an integrated air outlet that’s useful for blowing out the cab. Then, there is a 5-litre water container fitted at the rear for washing your hands as well as holders at the rear left to store a shovel and broom.
The manual controls for constant engine speed and the inching control for constant or maximum forward speed are still there, too, and part of the standard package in the UK.
Other details
- As before, the parking brake has an auto-hold function.
- Brake pedals are now suspended rather than on the floor for better ergonomics. A new brake valve also makes stopping smoother.
Summary
With the fettling of its smaller telehandlers, these units now adopt the same operating and control layout as on the larger models.
The update is particularly noticeable and visible in the cab and controls, with improved operation and performance. At the same time, Claas has retained proven features such as the robust attachment bracket and the central lifting eyes and hooks.
Christian Brüse
